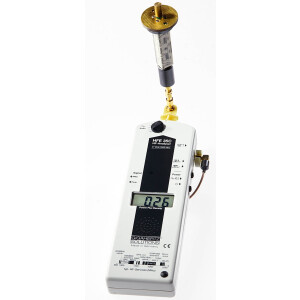

RF Analyser Kit HFE35C

simple and comprehensive! WITH UBB27.

In addition to the specially adapted LogPer antenna, this meter also includes the UBB27 ("360° antenna" of the HFE59B professional kit) which also measures lower frequencies. For an even more comprehensive picture of the exposure situation, based on which suitable remedial measures can be determined and their effectiveness checked.

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

More than 5,000 satisfied customers

794,95 € 993,70 €

incl. 19% VAT , plus

Gigahertz Solutions GmbH

SKU: 930-083-2W

GTIN: 4039009930083

Category: Special Offers

Kit offer including the following components:

HFE35C-basic with an extended frequency range reaching down to 27 MHz. (Important: The "normal" HF35C cannot be upgraded for use with the UBB27!)
Two antennas:
The especially compensated log.-per. antenna for the range above 800 MHz.
The corresponding horizontally-isotropic ultra-broad bandwidth antenna UBB27_G3 from 27 MHz up to beyond 2.7 GHz (so called "Omni" characteristic).
The extra broad frequency range comprises, amongst others, cell phone services like GSM (2G), UMTS/CDMA (3G), LTE (4G), 5G (wide area bands), Smart Meters, the lower wireless LAN / Wi-Fi band, Bluetooth, TETRA/BOS, TV, broadcast radio, and of course also the “old” CB-radio and microwave ovens. The lower airport radio frequencies are also comprised.

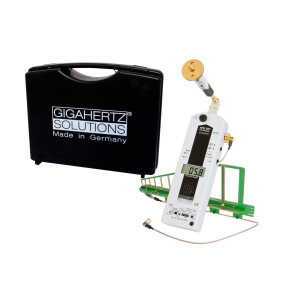

Small plastic case K5: with convoluted foam filler for a safe transportation of the measuring device and both antennas.

Of course, all other advantages of the series are also fulfilled by the HFE35C:

It is fully frequency compensated, i.e. no frequency range is overrated, underrated or even ignored.
In addition, our measurement technology always shows the SUM of ALL existing radiation at the place of measurement, not only the strongest signal, as is the case with the cheap - allegedly - very broadband detectors that have been launched on the market in recent years.
The two features mentioned above are extremely important for a meaningful measurement and technically very difficult to implement. This is also the reason for the unique position of our instruments in their respective price class.
The measured values are displayed reliably and directly in the unit of the building biology precautionary values - without any calculations being necessary. The HF Analysers are equipped with a fully-fledged LogPer antenna. This clearly sets them apart technologically from compact pocket devices without an external antenna. Their LogPer antennas of the devices allow users to detect and measure even hidden sources of high-frequency electromagnetic radiation (HF). The measurement can take place both indoors and outdoors (protect the meter from moisture!).With the audio analysis, even without electronic expertise, it is possible to distinguish most radiation sources, such as mobile phones, WiFi, DECT, radar, etc., from each other. Simply by listening and comparing with the offered sound samples.
Peak and average value measurement possible (switchable).
With the audio analysis it is possible to distinguish most radiation sources, such as mobile phones, WiFi, DECT, radar, etc., even without electronic expertise. Simply by listening and comparing with the offered sound samples.

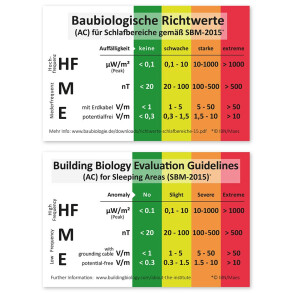

Detailed measuring instructions with limiting values allow a reliable evaluation of the personal exposure - even without technical expertise.
Last but not least: Many patents have been granted to us, the devices have ten thousandfold proven their reliability, and have shown to be leading-edge in their price categories.

Item weight:	1,16 kg
Frequency range:	27 MHz - 2.7 GHz
Scope of delivery:	Measuring device Plug-on LogPer and UBB antenna Alkaline manganese battery Detailed operating manual with neutral background information Plastic case
Measurement range:	Power flux density: 0.1 - 1999 µW/m²
Precision:	Basic accuracy (CW) including linearity error: +/- 6 dB Zero point deviation and special digitizing error ("rollover"): +/- 9 digits
Sensor:	Log-periodic measurement antenna with frequency response compensated directly on the antenna Quasiisotropic ultra-broadband antenna ("omni-antenna") adjusted for vertically polarized fields
Audio analysis:	Modulation frequency and field strength proportional audio signal supports identification of pulsed radiation sources (GSM, DECT, etc.) and detection of elevated exposures.
Signal rating:	Peak and average value display
Power supply:	9-volt E-block alkaline manganese battery (included), average operating time: 4 - 7 hours (depending on operating mode) Low-batt. indicator Auto power-off function
Warranty:	2 years
