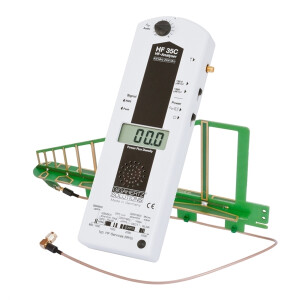

RF Analyser HF35C

for an easy RF evaluation, more sensitive and with audio analysis

Our best-selling RF meter in the home. Impressive audio analysis and higher sensitivity. With real LogPer antenna for detecting and measuring exposure to radio frequency (RF) electromagnetic radiation. Even if the higher 5G frequencies are on everyone's lips: The most important sources of exposure will still be covered by the HF35C for a very long time.

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

More than 5,000 satisfied customers

348,65 € 367,00 €

incl. 19% VAT , plus

Gigahertz Solutions GmbH

SKU: 530-214

GTIN: 4039009530214

Category: Measurement

➡️ This video is available in additional languages. In the YouTube settings (gear icon), you can select your preferred language under Audio track.

In addition to all functions of the HF32D:

Frequency range: 800 MHz - 2,7 GHz.
HF35C audio analysis: even a technical layman without electronic expertise can tell apart most radiation sources (mobile radio, WLAN/WiFi, DECT, radar, etc.) simply by listening and comparing the audio with the offered sound samples.
Factor 10 more sensitive than the HF32D (display resolution: 0.1 µW/m², largest display value 1999 µW/m²). Important for electrosensitive persons (EHS).
Peak and average measurement possible (switchable).

Of course, all common advantages of the series are also fulfilled by the HF35C

It is fully frequency compensated, i.e. neither a frequency range is overweighted, nor is it underweighted or even ignored.
Furthermore, our measurement technology always displays the SUM of ALL interfering radiations present at the location of the measurement, not only the strongest frequency in each case, as is common especially in the cheap - allegedly - very broadband detectors that have come onto the market in recent years.
The two previously mentioned performance characteristics are extremely important for a meaningful measurement and technically very difficult to realize. This is also the reason for the unique position of our devices in their respective price classes.
The measured values are displayed reliably and directly in the units of the building biology precautionary values. Without the need for any calculations.

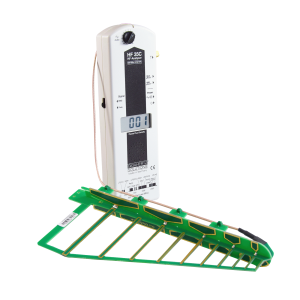

All our RF analyzers are also equipped with a full-featured LogPer DF/measurement antenna. This clearly sets them apart technologically from compact pocket devices without an external antenna. These allow users to detect and measure even hidden sources of radio frequency (RF) electromagnetic radiation. Measurements can be made both indoors and outdoors (protect the measuring device from moisture!).

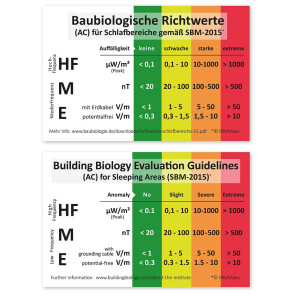

Detailed step-by-step measuring instructions are included with all our devices. Of course, these also contain the building biology guideline recommendations - so that even people without prior technical knowledge can reliably assess the exposure situation.
Not to forget: All of our electrosmog measuring devices are also patented many times over, have been tried and tested in practice thousands of times worldwide, and are trend-setters in their price class in terms of measurement technology.

Item weight:	0,45 kg
Frequency range:	800 MHz - 2.7 GHz
Scope of delivery:	Measuring device Plug-on LogPer antenna with antenna cable Alkaline manganese battery Detailed operating instructions with neutral background information
Measurement range:	Power flux density: 0.1 - 1999 µW/m²
Precision:	Basic accuracy (CW) including linearity error: +/- 6 dB Zero point deviation and special digitizing error ("rollover"): +/- 9 digits
Sensor:	Logarithmic-periodic measuring antenna
Audio analysis:	Modulation frequency and field strength proportional audio signal supports identification of pulsed radiation sources (GSM, DECT, etc.) and detection of elevated exposures.
Signal rating:	Peak and average value display
Power supply:	9-volt E-block alkaline manganese battery (included), average operating time: 6 - 7 hours (depending on operating mode) Low-Batt. indicator Auto power-off function
Warranty:	2 years
