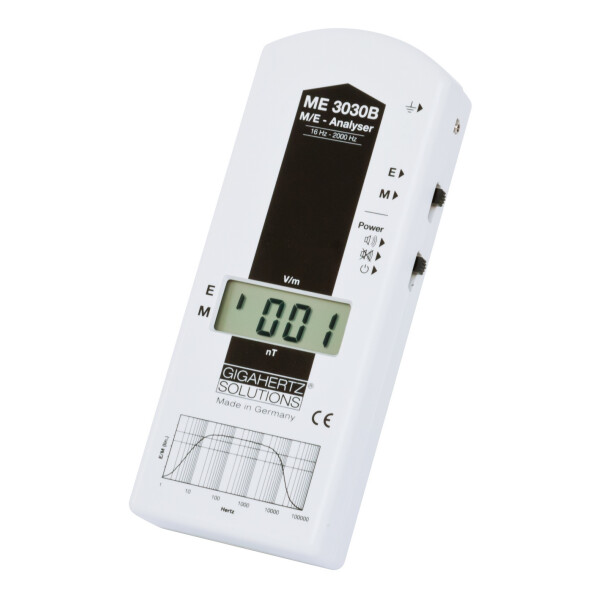

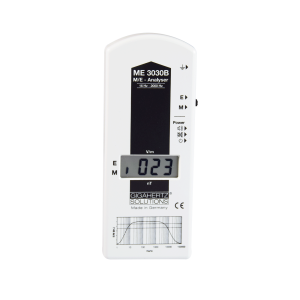

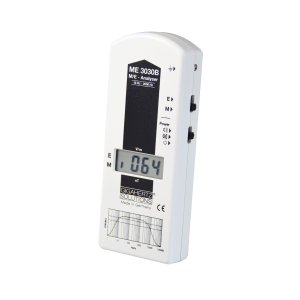

LF Analyser ME3030B-II

Reliable electrosmog measurement technology for your home

The cheapest field strength meter on the market for the serious measurement of EMF/LF electrosmog caused by household power supply and appliances, high-voltage power lines, electric rail etc.. Basis for mitigation and a control of their effectiveness.

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

More than 5,000 satisfied customers

142,40 € 177,85 €

incl. 19% VAT , plus

Gigahertz Solutions GmbH

SKU: 130-544-2W

GTIN: 4039009130544

Category: Special Offers

Even this starter device meets the high quality standards and common advantages of whole series:

The reading shows the total pollution directly in the entity corresponding to the building biology standard values - without any calculation required.
The "Geiger counter effect" helps to identify areas of increased LF stress.

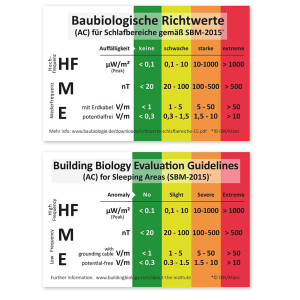

The included detailed measurement instruction enables the user to perform relevant measurements of EMF – even without technical expertise. Also the manual includes the recommendations for limiting values according to the standard of building biology SBM, which allow for a meaningful assessment of the personal level of EMF Pollution.
With the help of this instrument you can spot - even obscured - sources of LF pollution.
Many patents have been granted to us, the devices have tenthousandfold proven their reliability, and have shown to be leading-edge in their price categories.

Some important technical details:

It measures magnetic AND electric fields based on scientifically accepted measuring methods and with high sensitivity (display resolution: 1 nT or 1 V/m).
The device is fully frequency compensated, that is not only the 50/60 Hz mains frequency (eg. high-voltage lines), but also the 16.7 Hz of the traction current overhead lines and natural harmonics 2 kHz are shown on without distortion.

Item weight:	0,40 kg
Frequency range:	16 Hz - 2 KHz (compensated, better than -2 dB)
Scope of delivery:	Measuring device Grounding cable Alkaline manganese battery Detailed instruction manual with neutral background Information
Measurement range:	Magnetic flux density (one-dimensional): 1 - 1999 nT Electric field strength: 1 - 1999 V/m
Precision:	+/- 2 %, +/- 14 digits @ 50/60 Hz
Sensor:	E-field sensor for electric LF alternating fields H-field sensor for magnetic LF alternating fields (one-dimensional)
Audio analysis:	Sound signal proportional to field strength (with "Geiger counter effect", switchable)
Signal rating:	RMS
Power supply:	9-volt E-block alkaline manganese battery (included), average operating time: 24 to 36 hours (depending on operating mode) Low-battery indicator Auto power-off function
Warranty:	2 years
