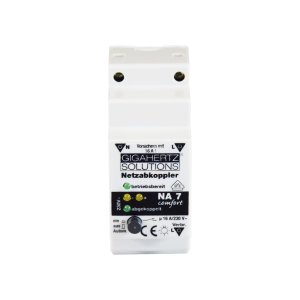

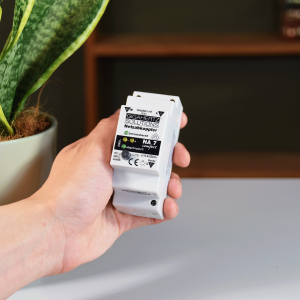

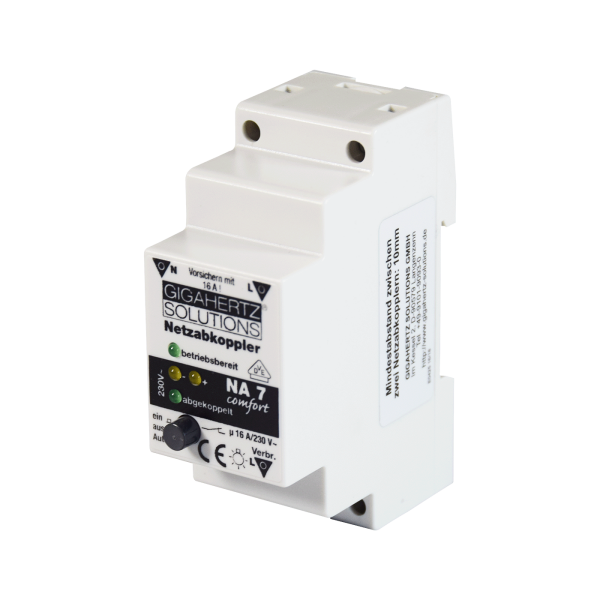

Demand Switch NA7 Comfort

With VDE mark - our best seller

Mains voltage automatically supplied only as long as it is needed! When mounted in the fuse box, the demand switch automatically interrupts the mains voltage as soon as the last consumer (e.g. the bedside lamp) is turned off, and switches the mains voltage back on automatically and without delay as soon as a consumer is turned back on.

Available immediately
Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

More than 5,000 satisfied customers

166,35 € 207,95 €

incl. 19% VAT , plus

Gigahertz Solutions GmbH

SKU: 210-185-2W

GTIN: 4039009210185

Category: Special Offers

Product Informations "Demand Switch NA7 Comfort"

In addition to all functions of the NA5:

Works reliably also with dimmers, fluorescent lamps, energy saving lamps, halogen lamps and start-up electronics.
Orientation lights in the light switches and infant night lights also work with disconnected power flow.
Reverse and excess voltage protected.
LED light to show disconnected power.
Residual ripple: < 4 mV.
LED-supported function diagnose for easy installation and operation.
The TOPSELLER among the demand switches!

Item weight:	0,20 kg
Frequency range:	In addition to all the features of the NA5:
Scope of delivery:	Demand switch System Control lamp Line filter X21 Manual
Measurement range:	Nominal voltage/load: 16 A, 230 VAC +/- 10%. 3500 Watt light bulb load Mechanical life of relay: approx. 15,000,000 operations 1-pole disconnection: for optimum personal protection and minimum ripple Overcoupling is optimally diverted by a low impedance output
Precision:	< 4 mV Monitoring voltage: Low-current DC voltage compatible with building biology (max. 8 mA / 230 VDC)
Warranty:	VDE mark, ID number: 40000677 Safety: Overvoltage proof according to IEC 1000-4-4 (Burst) and IEC 1000-4-5 (Surge) Clearance and creepage distances according to EN 600065 / VDE0860 are met Housing: Rail mounting according to DIN-EN 50 02
